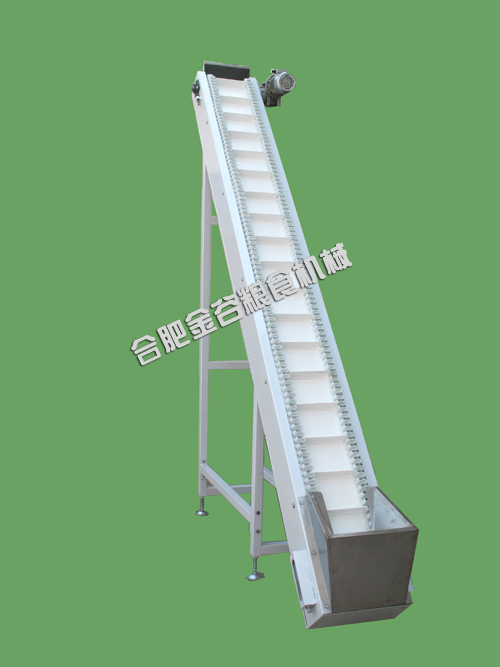

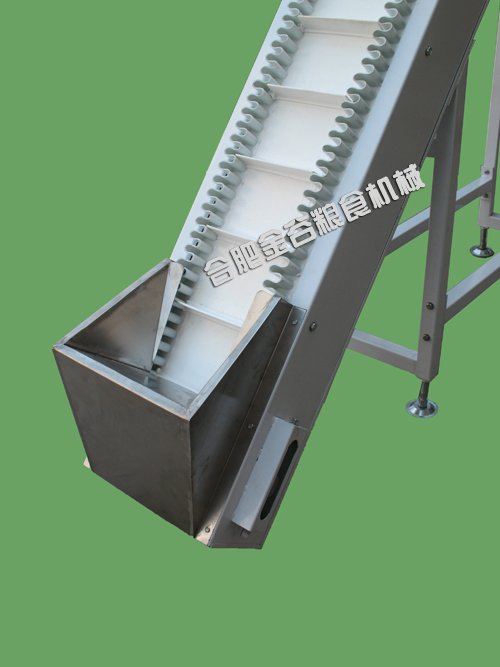

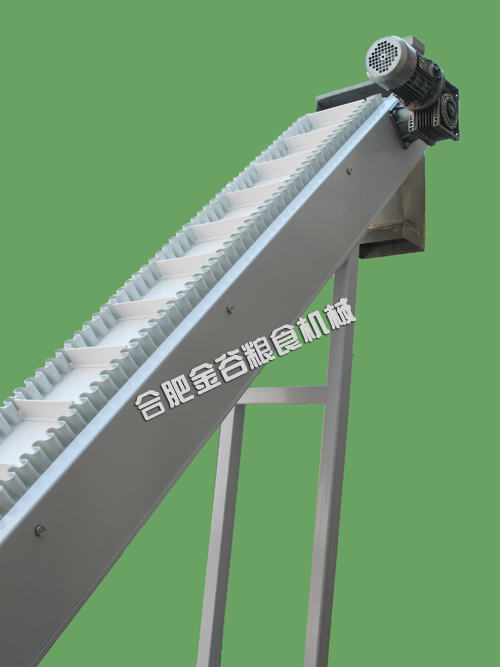

該系列產品為通用移動式膠帶輸送機，廣泛用于食品、茶葉、谷物、化工等顆粒狀散裝物料的運輸和轉載輸送。輸送帶主要以PVC（防靜電）輸送帶為基帶，兩側焊有裙邊以防物料灑落，中間焊有擋板以提供輸送能力并增大傾角。
輸送機長度和高度可隨用戶需要而設計。
This type of conveyer is for conveying with tapes in common use. It can be widely used for loading and conveying grains in bulks like food, tea, cereal, chemica materials and so on. Its tapes are basically made of PVC tape which is anti-static electricity. Edges are welded along both sides of the tapes to prevent materials falling, and a shield in the center position to better improve conveying effects and expand inclination.
Conveyer machine length and height can be designed to customer requirement.
主要技術參數（Major technical parameters）
|
序號No. |
項目project |
單位unit |
參數parameters |
備注note |
|
1 |
輸送量Conveying weight |
t/h |
0.5-5 |
輸送量隨物料容積及帶寬不同，而變化 |
|
2 |
帶速Tape speed |
m/s |
0.42 |
|
|
3 |
動力Power |
kw |
0.75 |
|
|
4 |
帶寬Width of tape |
Mm |
320\400\500\600 |
可根據客戶要求定制 |
|
5 |
輸送傾角Transmission Angle |
度 |
45°-50° |
| |
